MariaDB Integration

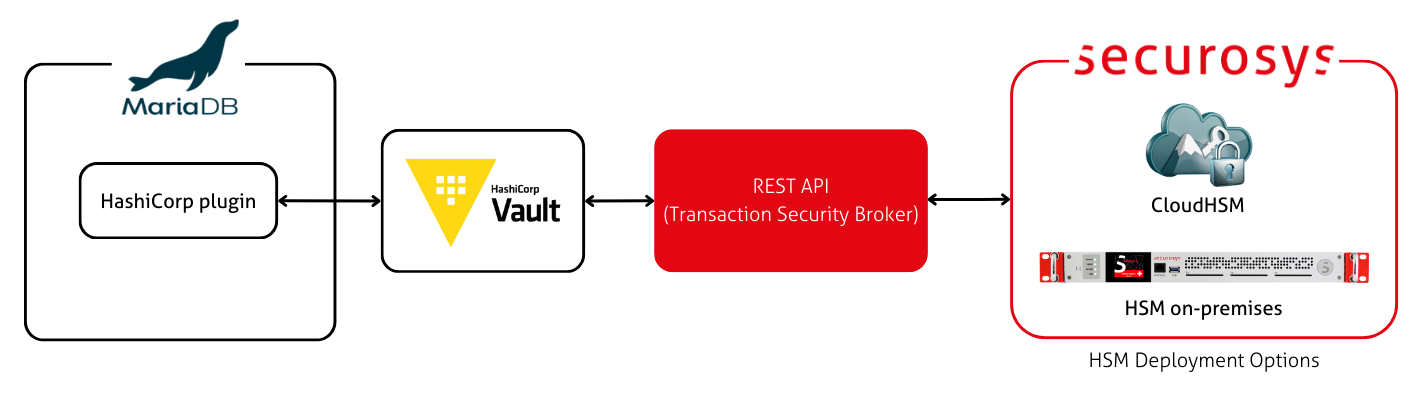

This shows how to set up database encryption for MariaDB using HashiCorp Vault, backed by a Primus HSM. This is done using the HashiCorp Key Management Plugin for MariaDB.

tip

It is also possible to set up MariaDB encryption via the Securosys plugin instead of via the HashiCorp plugin.

Using the HashiCorp plugin has the advantage of having HashiCorp as a central key management platform. The disadvantage is that HashiCorp introduces an additional layer of indirection.

Prerequisites

• A Primus HSM or CloudHSM
• An installation of MariaDB
• An installation of HashiCorp Vault, e.g. at https://localhost:8200
• The Securosys Secrets Engine installed in HashiCorp Vault

Steps

1. Register a key with HSM label MariaDBEncryptionKey under the name mariadb_encryption_key in the Secrets Engine.

   This key acts as a "root key". In this example, we use an RSA key, because Primus HSM supports Smart Key Attributes (SKA) only for asymmetric keys. Using an SKA as a root key (not shown here) allows you to build authorization policies that need to be fulfilled in order to decrypt your MariaDB database.

   The Securosys Secrets Engine supports asynchronous decrypt operation using SKA keys. The engine will pause the decrypt operation and wait for the approvals to be collected.

   CLI

   $ vault write securosys-hsm/keys/rsa/mariadb_encryption_key
   keyLabel="MariaDBEncryptionKey"
   keySize=4096
   attributes='{"decrypt": true,"sign": false,"unwrap": false,"derive": true,"sensitive": true,"extractable": false,"modifiable": false,"copyable": false,"destroyable": true}'

   REST

   curl --location --request PUT 'https://localhost:8200/v1/securosys-hsm/keys/rsa/mariadb_encryption_key' \
   --header 'X-Vault-Token: ${token}' \
   --header 'Content-Type: application/x-www-form-urlencoded' \
   --data-urlencode 'keyLabel=MariaDBEncryptionKey' \
   --data-urlencode 'keySize=4096' \
   --data-urlencode 'attributes={
       "decrypt": true,
       "sign": false,
       "unwrap": false,
       "derive": true,
       "sensitive": true,
       "extractable": false,
       "neverExtractable": true,
       "modifiable": false,
       "copyable": false,
       "destroyable": true
   }'

2. Generate new secret called mariadb_secret and encrypt it using the key mariadb_encryption_key from the Secrets Engine.

   CLI

   $ vault write securosys-hsm/integrations/mariadb/mariadb_secret
   keyName=mariadb_encryption_key
   cipherAlgorithm=AES
   [additionalAuthenticationData={additional-authentication-data}]
   [tagLength={tag-length}]
   [password={password-for-a-key}]

   REST

   curl --location --request PUT 'https://localhost:8200/v1/securosys-hsm/integrations/mariadb/mariadb_secret ' \
   --header 'X-Vault-Token: ${token}'
   --header 'Content-Type: application/x-www-form-urlencoded' \
   --data-urlencode 'keyName=mariadb_encryption_key' \
   --data-urlencode 'cipherAlgorithm=AES'
   --data-urlencode 'tagLength={tag-length}' \
   --data-urlencode 'additionalAuthenticationData={additional-authentication-data}' \
   --data-urlencode 'password={password-for-a-key}'

   tip

   Every request to this endpoint using same key name and secret name will rotate the secret.

3. Configure MariaDB using its my.cnf or mariadb.cnf config file. Configure MariaDB to load the plugin, configure the plugin options, and configure MariaDB to enable database encryption.

   Using the loose- prefix is optional.

   [mariadb]
   plugin-load-add=hashicorp_key_management.so

   # Configure the HashiCorp plugin
   loose-hashicorp-key-management
   loose-hashicorp-key-management-vault-url="https://localhost:8200/v1/securosys-hsm/integrations/mariadb/mariadb_secret/?key_name=mariadb_encryption_key&cipher_algorithm=RSA&version="
   # loose-hashicorp-key-management-vault-url="{vault_address}/v1/securosys-hsm/integrations/mariadb/{secret_name}/?key_name={key-name}&cipher_algorithm={cipher_algorithm}&tag_length={tag_length}&aad={additional_authentication_data}&password={password}&version="

   loose-hashicorp-key-management-token="{vault_access_token}"
   loose-hashicorp-key-management-check-kv-version="off"
   # max timeout is 86400 seconds
   loose-hashicorp-key-management-timeout=3000
   loose-hashicorp-key-management-retries=0
   loose-hashicorp-key-management-use-cache-on-timeout="on"
   loose-hashicorp-key-management-caching-enabled="on"
   # 1 year in miliseconds
   loose-hashicorp-key-management-cache-timeout=31556952000
   loose-hashicorp-key-management-cache-version-timeout=31556952000

   # Enable InnoDB encryption
   innodb_encrypt_tables = ON
   innodb_encrypt_temporary_tables = ON
   innodb_encrypt_log = ON
   innodb_encryption_threads = 4
   innodb_encryption_rotate_key_age = 1

   info

   The loose-hashicorp-key-management-vault-url must end with &version=. The HashiCorp plugin will automatically add the secret version (used for key rotation) to the URL.
