Realm Export/Import

This guide explains how to the realm export/import in Keycloak affects the Keycloak Securosys HSM Provider.

Realm Export

Importing and exporting realms remains the same as how you would do this for a regular instance of Keycloak. As the provider is part of the realm now, the HSM details are also part of the export.

UI

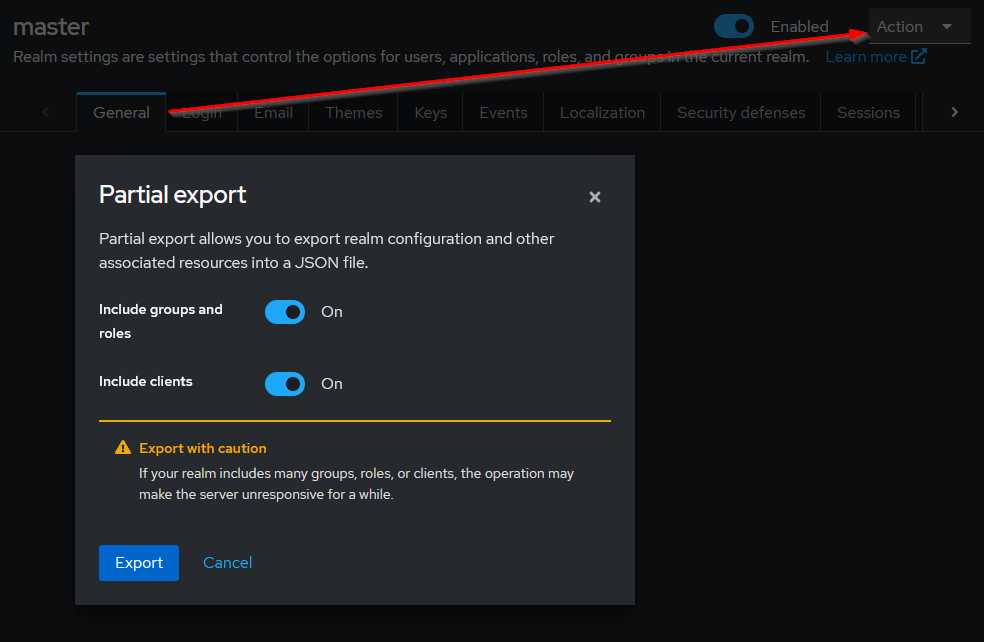

Export the realm configuration using the UI. Navigate to Realm Settings > General > Action > Partial Export

CLI

Export the realm configuration using the CLI

# to export all realms to a file
bin/kc.[sh|bat] export --file all-realms

# to list all export options
bin/kc.[sh|bat] export --help

The downloaded JSON file contains the section components.org.keycloak.keys.KeyProvider where you can find the securosys-hsm provider details.

warning

The HSM Setup Password and the HSM Proxy Password (when connecting to a CloudHSM) are exported in plaintext.

The Permanent Secret is stored as a file, as specified by the HSM Secret Path config option. This file is not part of the export.

Realm Import

UI

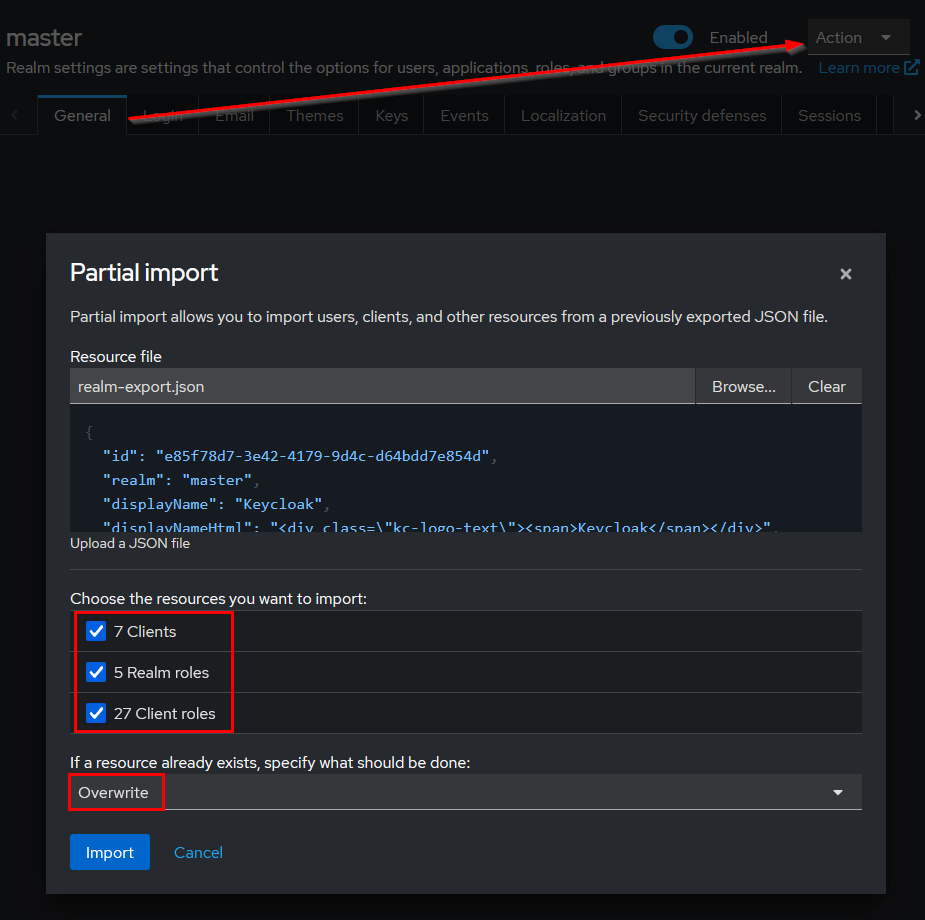

Import the updated configuration file using the UI Navigate to Realm Settings > General > Action > Partial Import

Select Overwrite, to apply any changes that you have done for the provider.

CLI

Import the updated configuration file using the CLI

# to import and override all realms from a file
bin/kc.[sh|bat] import --file all-realms --override true

# to list all import options
bin/kc.[sh|bat] import --help

info

By default, the --override option is set to true so that realms are always overridden with the new configuration.

Afterwards, you need to set a new HSM Setup Password in the HSM Setup Password config field. This is because the old Setup Password has likely expired.
