Securden PAM Integration

Proceed according the Securden Unified PAM Administrator Guide, chapter "Store Encryption Keys on Securosys HSM", included in the Securden software distribution. The steps below are only a short extract and not complete!

Backup

Take a backup of the entire database along with the encryption key before starting the HSM configuration process.

• Stop the Securden PAM service on Primary and Secondary servers
• Configure the HSM details
  • Navigate to /<Securden installation folder>/bin and execute ConfigureHSM.exe

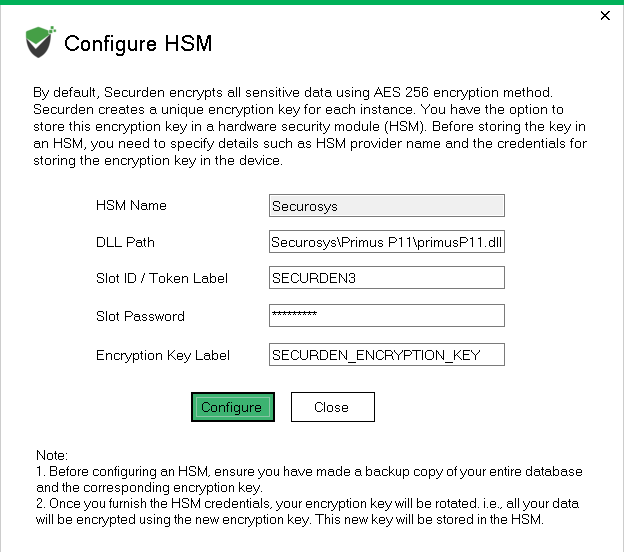

  • Provide the necessary details for the HSM connection and click Configure (see screenshot below)

    • Provider name       HSM Provider selection: Securosys

    • DLL path          Path to the PKCS#11 provider library file

      • Windows default:    C:\Program Files\Securosys\Primus P11\primusP11.dll
      • Linux default:      /usr/local/primus/lib/libprimusP11.so

    • Slot ID or Token name   HSM user name (partition name) or alternatively PKCS#11 slot id where the Securden encryption key should be stored

    • PKCS#11 password      PKCS#11 password of the HSM partition

    • Encryption key label    Label of the Securden encryption key in the HSM
